DFC Advanced Digital Force Gages

ID：DFC

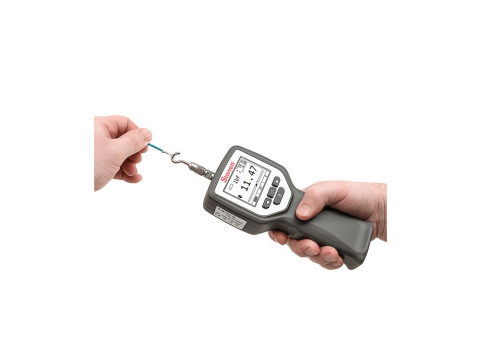

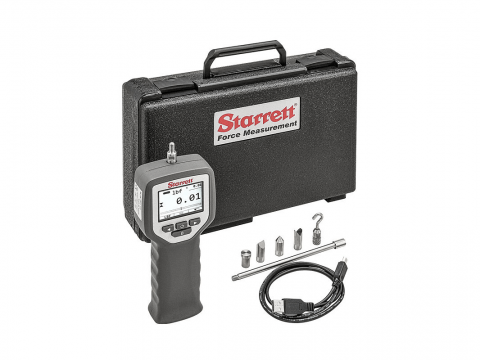

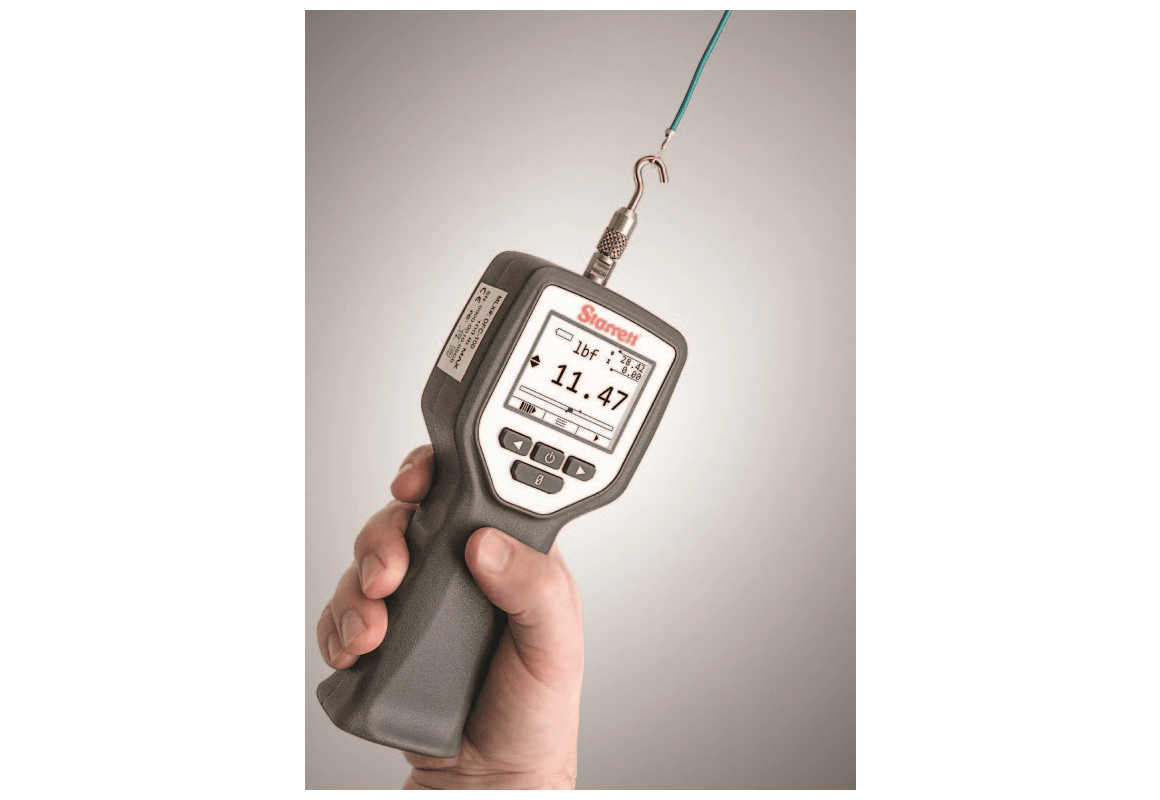

The DFC may be used as a high-accuracy handheld force gage or as a digital controller for use with the FMM Digital Force Testers. The DFC can serve as a universal interface where you set up your tests and where you configure load limits, distance limits, break limits, crosshead travel direction, crosshead speed and more. The DFC features a measurement accuracy of 0.1% full scale with internal data sampling at 25kHz. Display resolution is 10,000:1. The DFC features Bluetooth, USB and RS-232 communications plus digital I/O.

Features Video

Exclusive "Machine Control" Technology
Better than 0.1% Accuracy
Eight Capacities in DFC Series (2, 5, 10, 20, 50, 100, 200 and 500lbf)
Display load in lbf, N, kgf, ozf and gf units
Tension or Compression
Save Results to Memory for Statistical Calculations, or Export to your PC for Detailed Analysis
Measure Peak Loads Quickly
Use Tolerances for Pass-Fail Analysis
Bluetooth, USB, and RS232 Communications
25,000 Hz Data Sampling Rate

Model No.	N	KGF	LBF	OZF	GF	Safe Overload % Full Scale	Full Scale Deflection	Thread Size (mm)
DFC-2	10	1	2	32	900	200	0.33 mm	M6 x 1-6H
DFC-5	20	2	5	80	2200	200	0.18 mm	M6 x 1-6H
DFC-10	50	5	10	160	5000	200	0.15 mm	M6 x 1-6H
DFC-20	100	10	20	320	10,000	200	0.20 mm	M6 x 1-6H
DFC-50	250	25	50	800	25,000	200	0.39 mm	M6 x 1-6H
DFC-100	500	50	110	1600	50,000	200	0.60 mm	M6 x 1-6H
DFC-200	1000	100	225	-	-	200	0.54 mm	M6 x 1-6H
DFC-500	2500	250	550	-	-	200	0.70 mm	M10 x 1.5-5H

NOTES: Load measurement accuracy is ±0.1% of load cell capacity. Display resolution is 10,000:1
