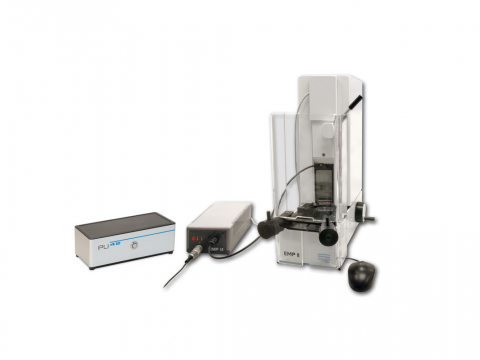

EMP II Gauge Block Test Station
ID：EMP II
The innovative EMP II can test class 0, 1 and 2 gauge blocks. With a measuring range between 0.5 and 100mm and a resolution of 0.01µm, it is always precise.
-
Benefits:
- Tests are carried out according to DIN EN 3650 and meet DAkkS requirements.
- Semi-automatic measuring, defined measuring points using a switching gate
- Local set-up for thermal decoupling
- Two opposite positioned encoders for differential measuring
- Comparative measurements against gauge block reference

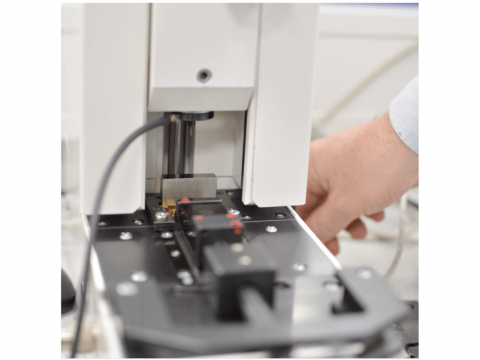

- Automatic lifting of gauge block while moving to points
- High reproducibility of measuring values

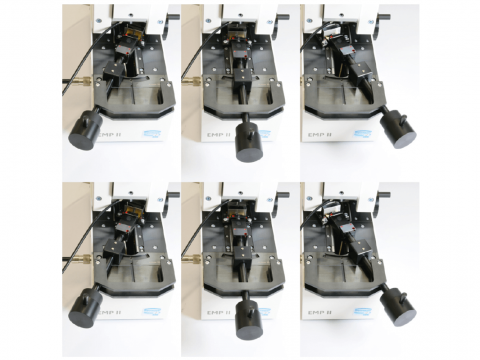

- Fast measuring thanks to safe one-hand mechanics, fast measuring data recording
- Automatic transfer of all measuring values to downstream software (eg.: QMSOFT)
- Easy and safe to use thanks to ergonomic design
- Extra heavy design with cast body in portal design
Technical data:- Application range 0,5 - 100 mm
- Resolution 0,01 µm
- Measuring uncertainty (length difference D < 10 µm) 0,03 µm + 0,002 * D
-

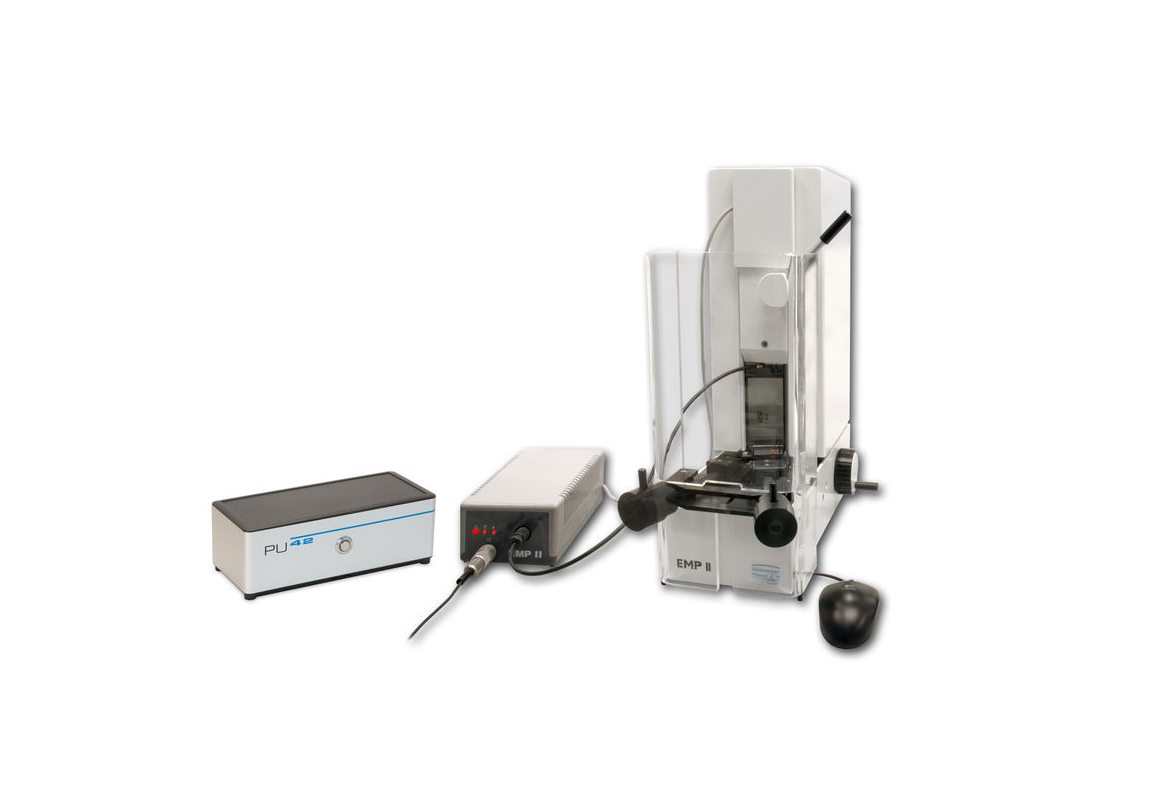

Gauge block comparator EMP II
-
