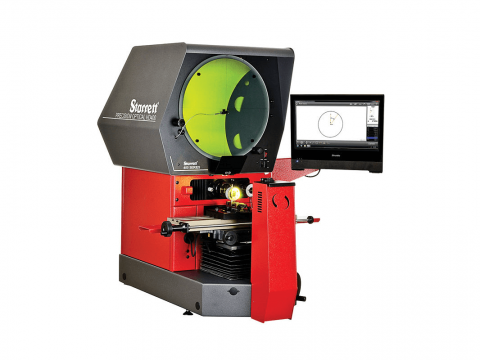

HD400 Horizontal Benchtop Optical Comparator

ID:HD400
The HD400 is a dual lens optical comparator offering a two-lens mount allowing instant switching between two magnifications lenses or video camera adapter. The HD400 is equipped with a 16" (400mm) travel workstage as standard. Optional automatic edge detection or video edge detection removes operator subjectivity in locating edges of parts being measured. A bayonet style lens mounting system accepts a choice of six interchangeable lenses as well as our OV2 Zoom or TOV2 fixed telecentric magnification video camera systems. Motorized stage, fully automatic CNC controls and swing-away lamp house are all optional features.
    • 16" x 6" (400mm x 150mm) X-Y travel workstage
    • All metal construction with hard-anodized stage tooling plate
    • 16" (400mm) diameter screen

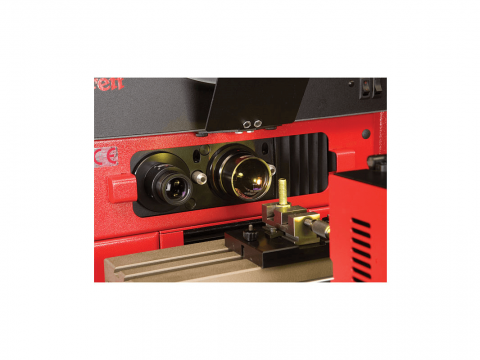

    • Dual-lens mounting system
    • Collimating condenser with yellow/green filter and provision to mount further accessories
    • Linear encoder (glass scale) with 20 µin (0.5 µm) resolution on both X and Y axes

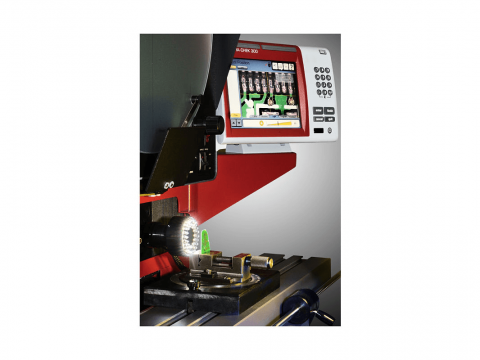

    • LED profile and surface illumination
    • Fully retractable flexible duplex fiber optic surface illumination
    • Digital protractor for accurate angle measurements (1' resolution) via Q-axis readout
    • Helix adjustment for accurate thread form inspection

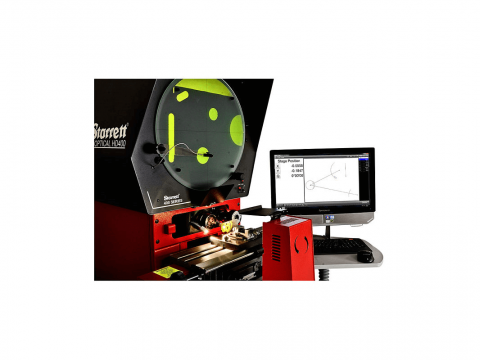

    • Available with MetLogix M1 tablet, M2 or M3 PC-based touch screen measuring software or Mx-Series digital readout system
    • Fine adjustment on all axes
    • Quick release mechanism on the X-axis
