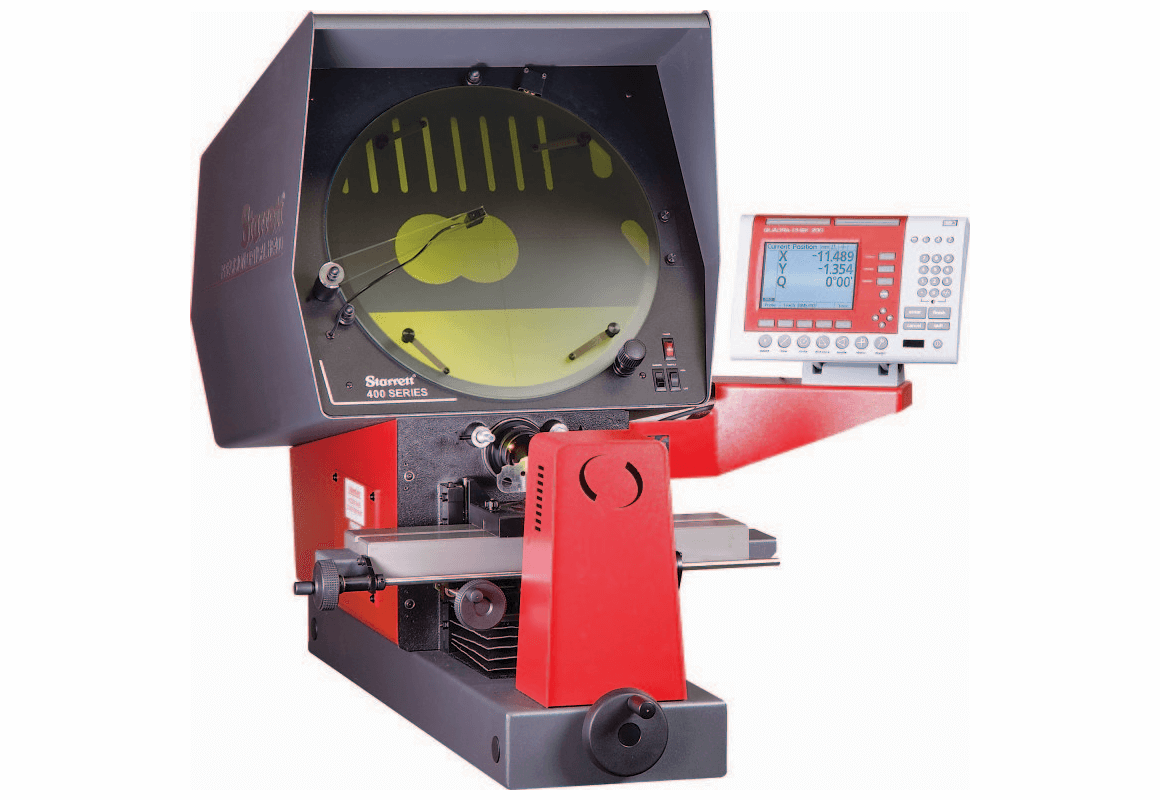

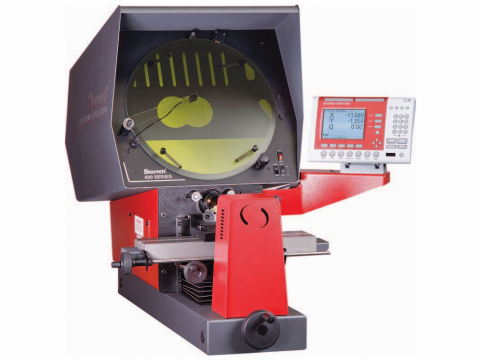

HE400 Horizontal Benchtop Optical Comparator
ID：HE400
The most economical of our bench top comparators, the HE400 offers a 16" (400mm) diameter screen, 10" x 4" (250mm x 100mm) X-Y stage travel, LED lighting, choice of six bayonet-style fixed interchangeable lenses and Q-axis angular readout: all to improve capability and performance. These latest horizontal comparators are fitted with MetLogix M1, M2, or Mx-Series measuring software digital readout systems, making them simple to use, but having the power to satisfy the most complex measuring requirements.
-
- All metal construction

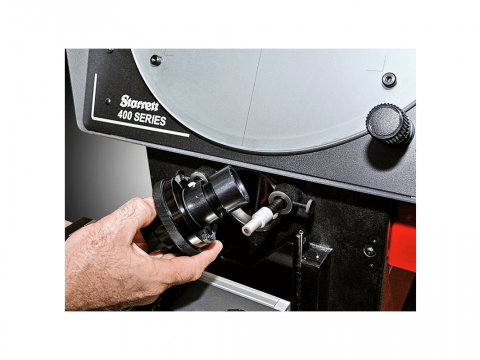

- Single bayonet-style lens mounting system
- Collimating condenser with yellow/green filter and provision to mount further accessories
- Linear encoder (glass scale) with 1 µm on both X and Y axes
- LED profile and surface illumination
- Fully retractable flexible duplex fiber optic surface illumination
- Digital protractor for accurate angle measurement 1' resolution
- Available with MetLogix M1 tablet, M2 PC-based touch screen measuring software, Mx100 or Mx200 digital readout system
- 15.4lb (7kg) load capacity

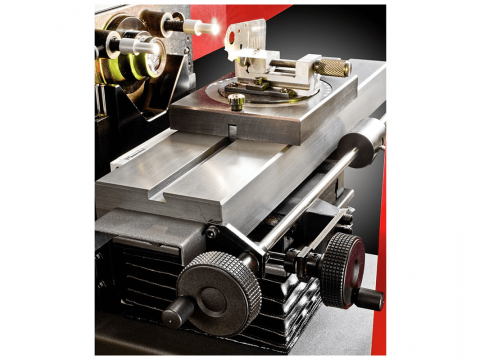

- 18.75" x 4.74" (480mm x 120mm) precision workstage top plate with machined slot for easy fixturing
- 10" x 4" (254mm x 100mm) of XY stage travel
- 1-1/8" (8mm) focus travel
- Fine adjustment on all axes
- Quick release mechanism on the X-axis
-
