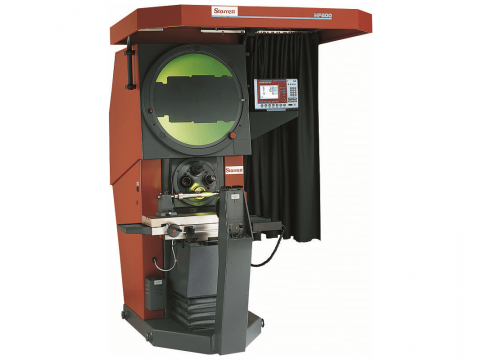

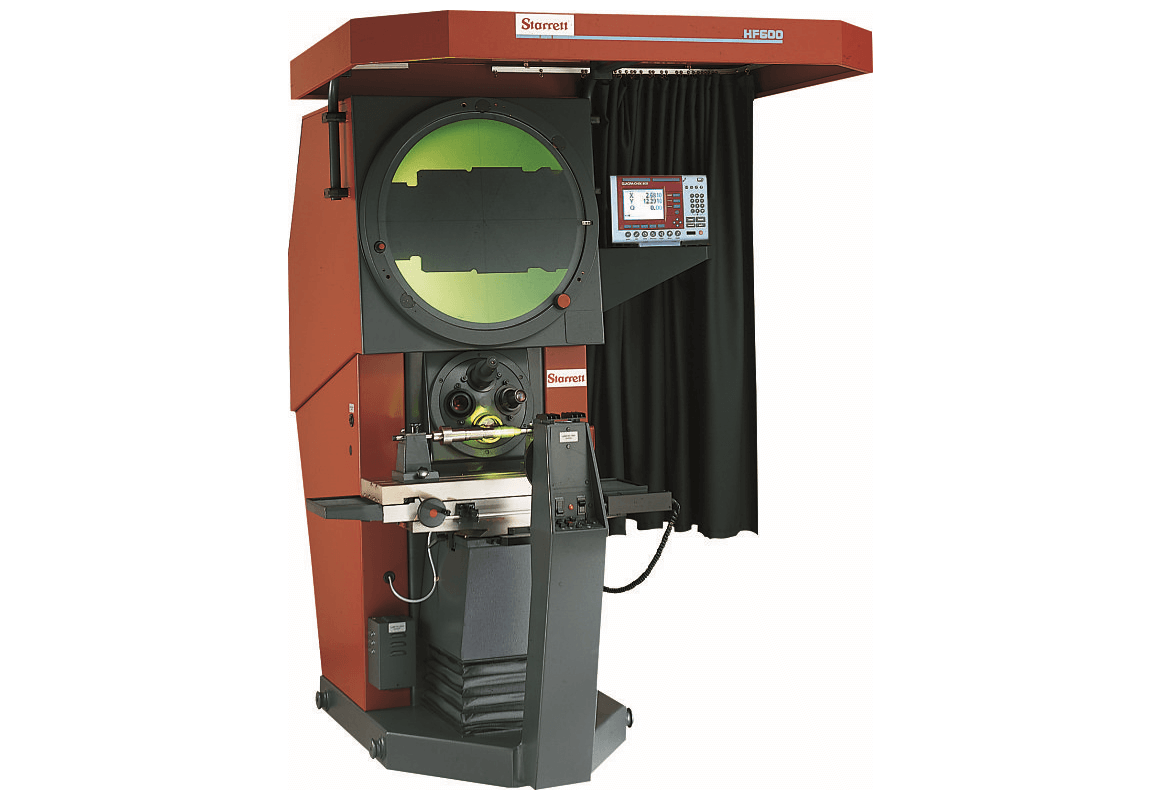

HF600 Horizontal Floor Standing Optical Comparator

ID:HF600
Well known throughout the world for superior value and exceptional measuring performance across the full measuring range and at all magnifications, the HF600 sets the standard in all applications from the QC lab to the production floor. The HF600 comparator has a fourposition lens turret for instant selection of optional magnification lenses. Inserting the optional OV2 or TOV2 Video Camera System converts the comparator into a video metrology system. Ideal for use over a broad spectrum of industries and applications, the HF600 is designed and built to satisfy the requirements of measuring small to large work pieces with total precision, ruggedness, and efficiency. The HF600 utilizes 2D measurement software for geometries like diameters, radius, angles, lines, points, and for skew correction. Advanced software can also provide many tools such as CAD file import, CAD data export for reverse engineering, standard and custom reports, and Ethernet networking.
    • 12" x 8" X-Y travel workstage (300 x 200mm)
    • All metal construction with nickel plated stage tooling plate
    • 24" (600mm) diameter screen with precision cross lines and overlay clips
    • Motorized X and Y axes standard
    • Two-axis power drive via joystick and variable speed control for fine adjustment
    • Projection lens turret with four lens capacity (lenses not included)
    • Turret mounted condenser system and yellow/green filter and provision to mount further accessories
    • Stage Weight Capacity: 330lbs (150kg) (evenly distributed)
    • Workstage capacity between centers: 17.5" (440mm)
    • Fully retractable duplex fiber optic surface illumination
    • 20 µin (0.5 µm) resolution Heidenhain linear scales
    • Screen driven rotary Q-axis wtih 1' resolution
    • Available with MetLogix M1 tablet, M2 or M3 measuring software with touch screen and PC, or Mx-Series digital readout systems
    • Complete with full canopy and curtains
  • Starrett Optical Comparators
