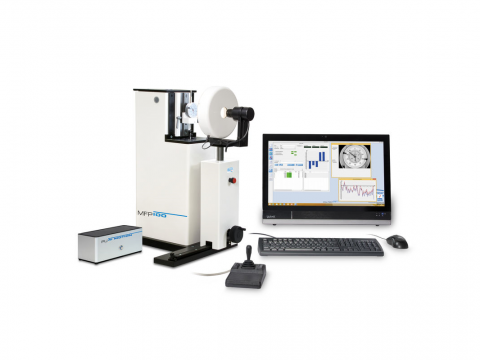

MFP 100 / MFP 100 BV Dial Gauges and Precision Indicator Testing Device
ID：MFP 100/MFP 100 BV
Fully-automatic measuring dials and precision display testing device for analogue and digital measuring dials, as well as all types of measuring probes with a measuring range of up to 100mm. The measuring results are even more precise with image processin.
-
Benefits:
- Semi- / full automatic testing system
- Suitable for analogue and digital dial gauges, precision indicators and lever gauge measuring devices as well as for any kind of electronic measuring probes
- Adherence to Abbe‘s comparator principle to achieve the highest measuring precision
- Very sensitive positioning < 0.1 µm and high positioning speed > 1 mm/s
- Great scope for individual software adjustments for customer specific tasks
- Dialtest software version 7 for customer specific testing plans
- Measuring force testing device allows to establish force measurements when test item is fitted
- Easy to handle thanks to movable light-camera unit
- Compact design
Technical data:- Application range 0 - 100 mm
- Resolution 0,01 µm
- Reversal range < 0,15 µm
- Repeatability (range) < 0,1 µm
- Measuring uncertainty 0,08 µm + 1 * 10-6 * L
- Weight 60 kg (MFP 100), 75 kg (MFP 100 BV)
-

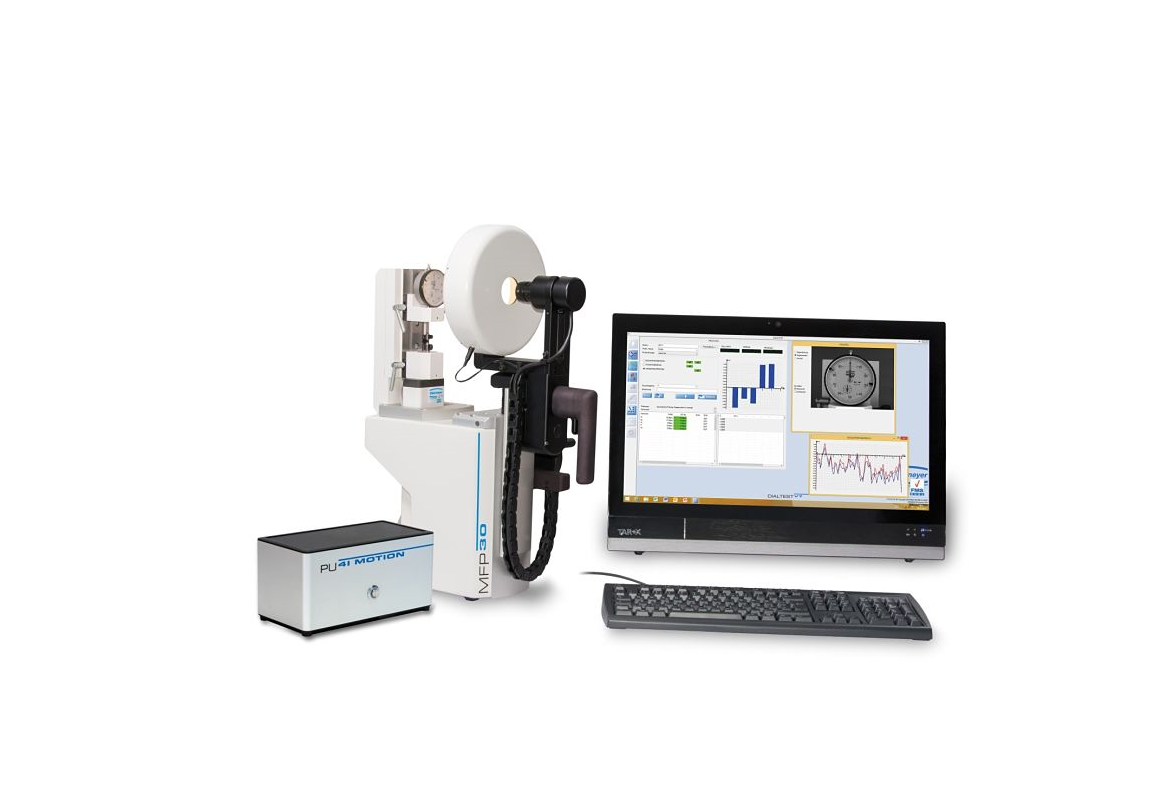

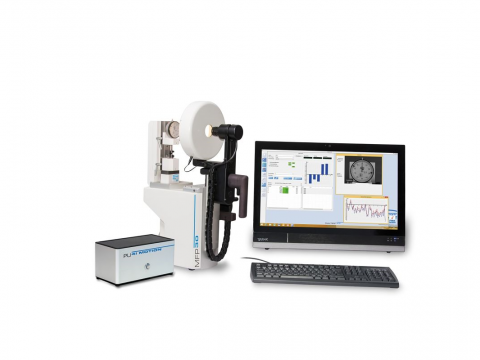

Dial gauges and precision indicator testing device MFP 30 MFP 100 BV
-
