MMS L3 Single-Column Material Measurement System

ID:MMS L3

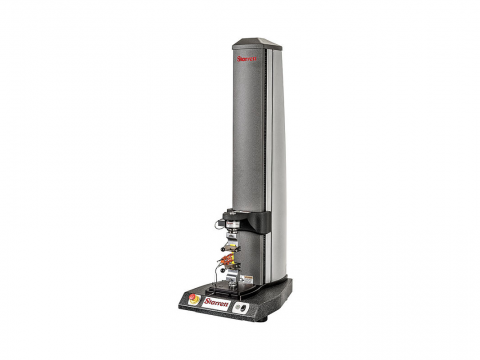

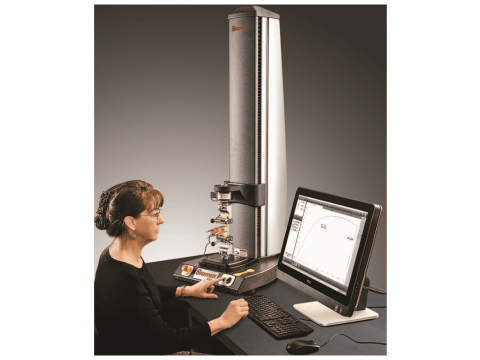

The Starrett MMS-1000-L3 is a single-column material measurement system optimized for high-volume production and quality control testing. The MMS-1000-L3 frame has a 1000N (225lbf) testing capacity ideal for tensile or compressive testing. The system includes the test frame, controller & software. The controller features a Windows operating system with high resolution color, multi-touch display, Wi-Fi, Bluetooth and USB 2.0 port(s). The L2 Plus software features analysis tools to measure and display results on a single graph. Once this is complete, those results are automatically measured and placed on all of the test runs within your batch. Display full graphs, split graphs with data tables or as a data table complete with statistical calculations or tolerance results.
    • Turnkey 1000N (225lbf), 2500N (562lbf), 5000N (1124lbf) Material Measurement System includes Testing Frame, L3 Controller with L3 Force Measurement Software
    • Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
    • Perform Complex Multi-stage Testing Using Advanced Test Builder Application
    • Small, Compact Footprint (15"W x 20.25"D)
    • Use the Analysis Tools to Measure and Display Results on a Single Graph
    • High Resolution Encoder for Precise Position Control Resolution
    • Dual Strain Channels for Extensometers

    Model No. MMS-1000 MMS-2500 MMS-5000
    Load Capacity, Full Scale N 1000 2500 5000
    KGF 100 250 500
    LBF 225 562 1124
