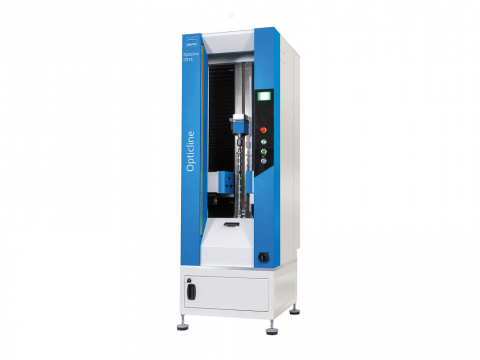

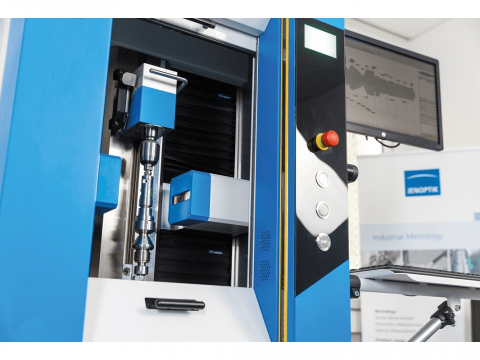

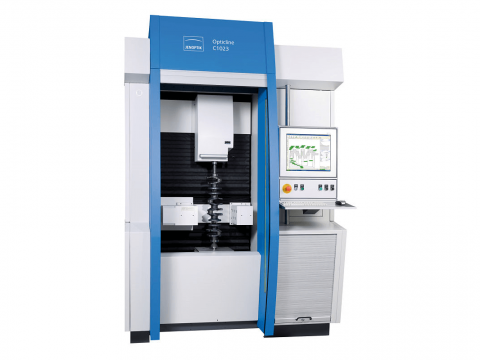

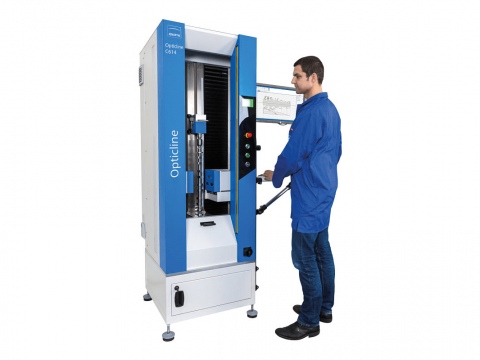

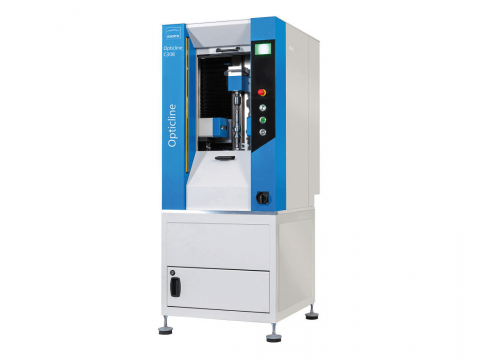

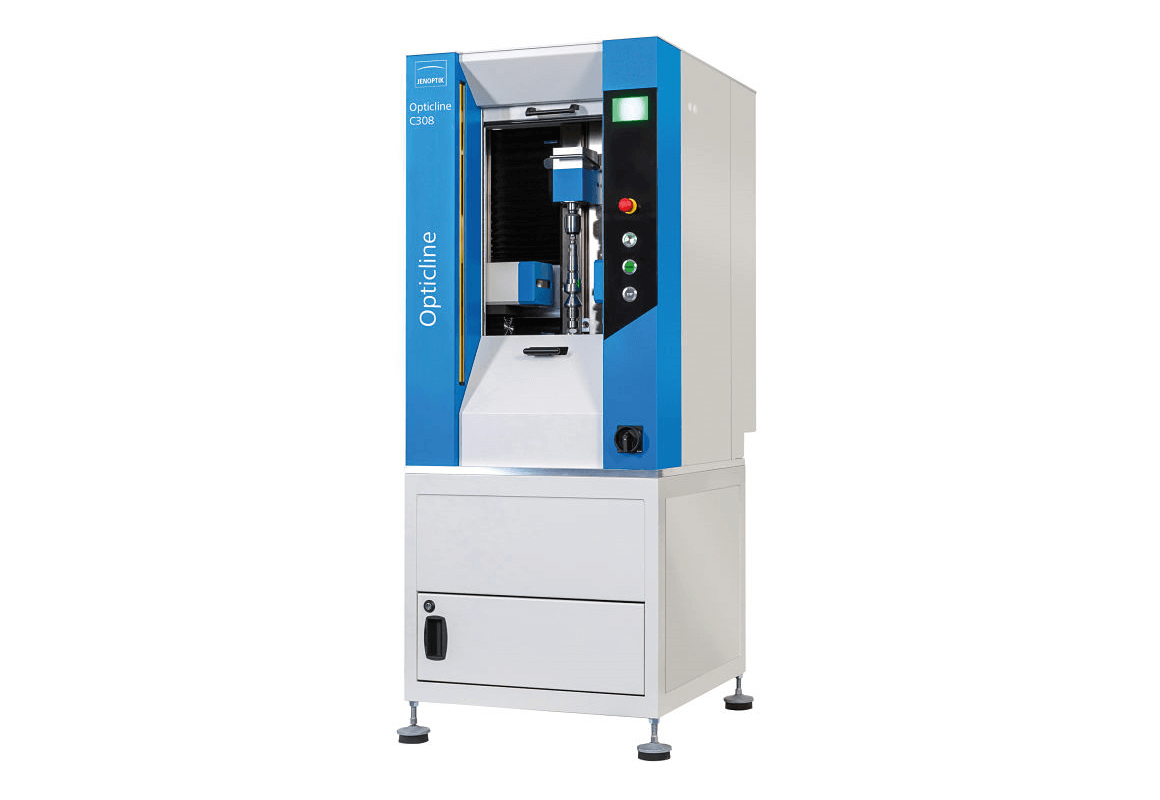

C Sseries Optical Shaft Measuring Systems
ID：Opticline C
Opticline C series shaft measuring systems offer maximum gauge repeatability and reproducibility from 1 µm. With different configurations, such as a high-precision C-axis or multi-sensor system, the performance capability can be customized to suit your requirements. The instruments thus offer the highest level of flexibility, accuracy and stability.
-
- Optimum precision properties in µm delivering measurements within seconds.
- An individual camera offers bidirectional measurement for workpiece diameters of up to 80 mm.
- Scaling of the optical system for measuring diameters of up to 140 mm without loss of resolution or quality.
- Special tailstock and headstock design for rapid workpiece changes and maximum precision.
- Simple and automatic workpiece alignment.
- Real-time processing and fastest possible data transfer.
- Self-monitoring functions for reliable use in production.
- Low-maintenance, robust measuring system including camera with IP52 protection.
-
