PH1 Manual Indexable Probe Head
ID：PH1

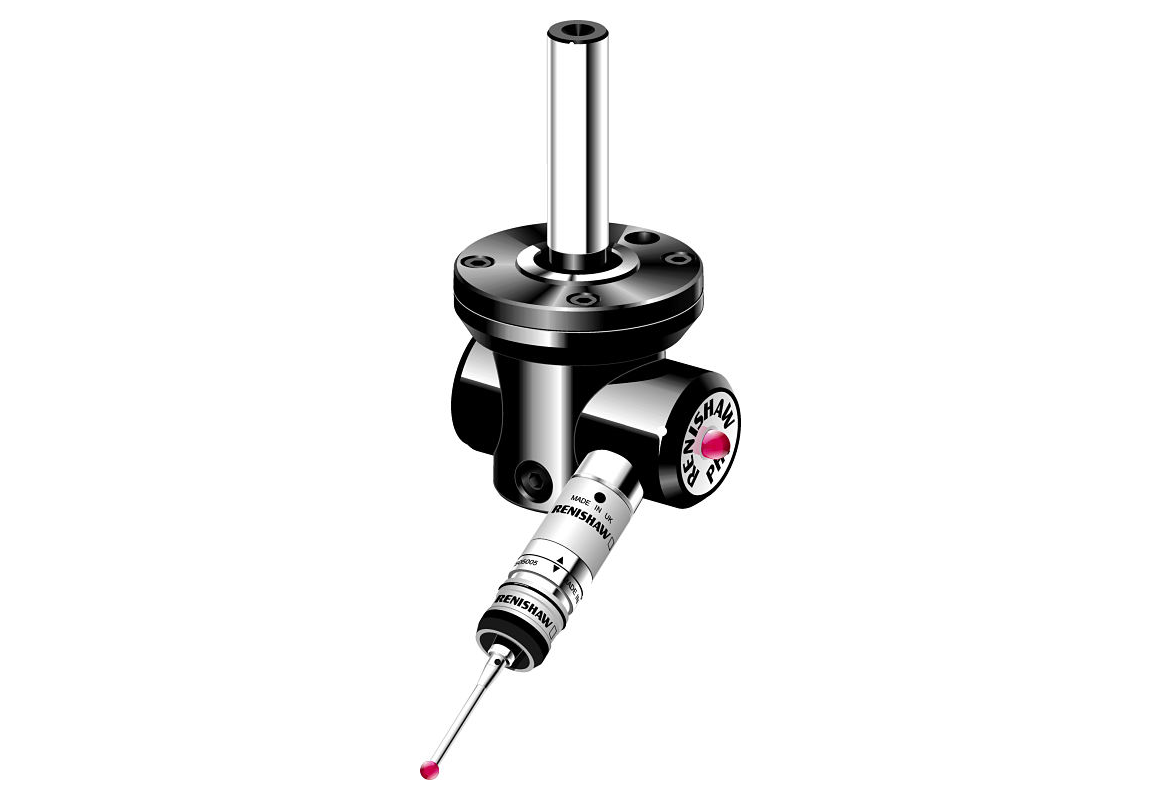

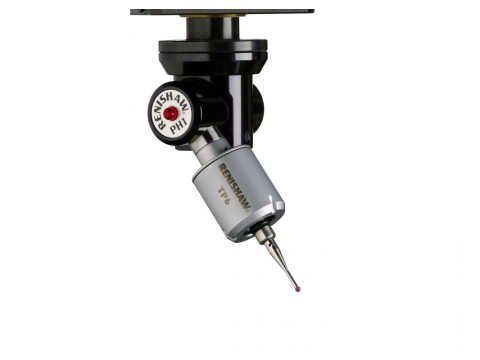

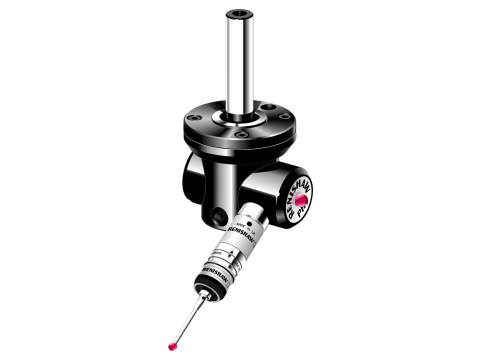

PH1 is a small shank mounted manual probe head with movement in the A and B axes, with limited overtravel protection.
The PH1 is a general purpose, swivel-type probe head. Its compact design makes it ideally suited to a CMM where manual orientation of a Renishaw M8 touch-trigger probe is required.
-
- Weight: 125 g
- Probe mounting: M8 thread
- Head mounting: MS range of shanks
- Suitable interface: PI 200-3
- Probe status indication: 1 LED
- Cable connection: 5-pin DIN 180º socket
- A-axis indexing: Swivel of 115° locked with hexagonal key (3 mm A/F)
- B-axis indexing: 15° steps through 360°
