KOBA-check

Sphere Plate KOBA-check

ID：KOBA-check

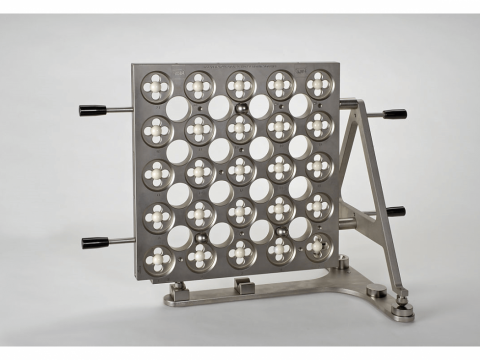

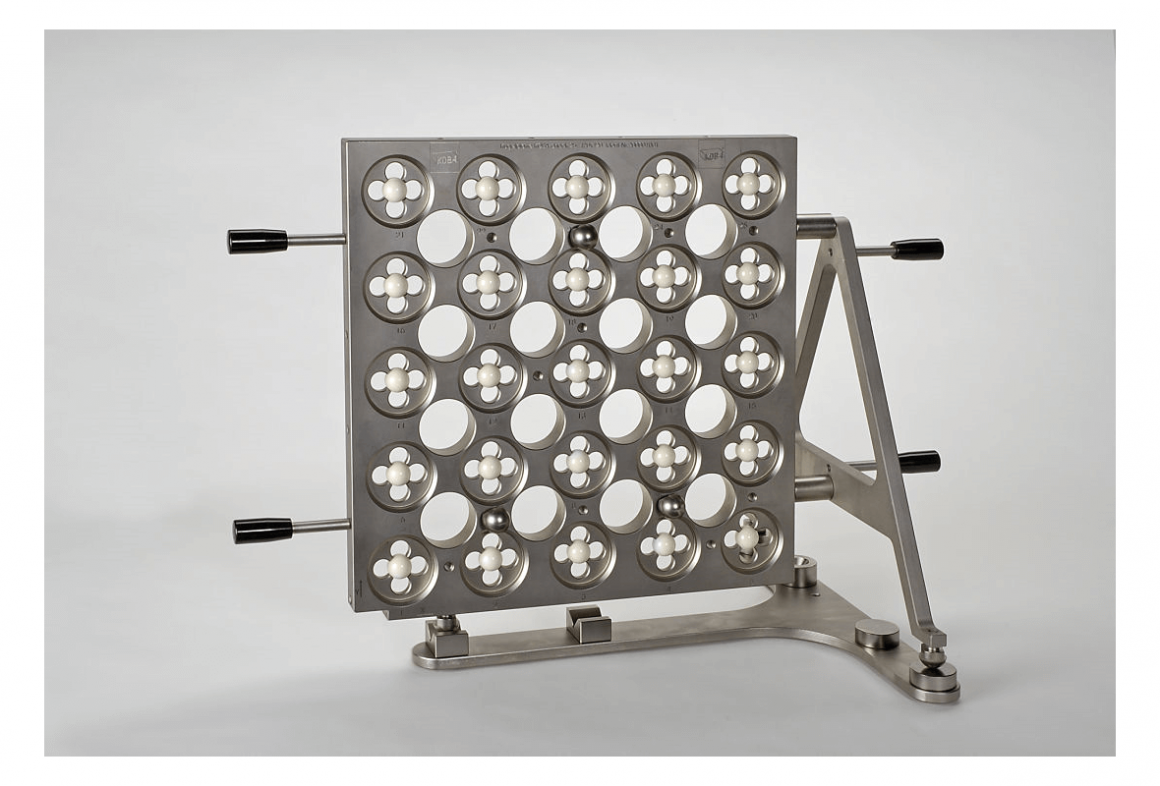

Sphere Plate KOBA-check Two-dimensional test body with ceramic sphere targets
Features
    • Calibration, monitoring and traceability of CMM
    • Determination of required parameters in the "virtual CMM"
    1. Standard dimensions 230 x 230 x 24 mm up to 620 x 620 x 24 mm
    2. Special sizes and individual arrangement of spheres at customer's request
    3. Meets all requirements of ISO 10360 and VDI/VDE guideline 2617
    4. High dimensional accuracy of the target (dimensional variation < 0,3 µm)
    5. Excellent long-term-stability
    6. Accessories for flexible set up available
    7. Probe-Test-Unit for checking Probe-System according to ISO 10360
    8. Optional PTB, DAkkS or KOBA calibration certificate
    9. Well-tested and independently operating software available
